Reflection processing, graphical interface for
SEISMIC UNIX* for Windows
Visual_SUNT is a
Windows 32 or 64 bits software that is linked to SUNT modules (Seismic UNIX for
SUNT is an adaptation
for Windows of SEISMIC UNIX (Center for Wave Phenomena of Colorado
School of Mine). There are more than 100 modules allowing all usual
steps of seismic reflection processing. There is no limit on the number of
contains specific utility modules that complement those of SUNT. With
Visual_SUNT you can easily convert SEG-2, SEG-Y, SEG-D, ABEM and OYO
data to SU/SEGY. Among the Visual_SUNT utility modules are: Header display,
Header edit, frequency spectrum, on screen mute and trace kill, geometry
display, velocity computation with hyperbola curve, first breaks pick, easy
geometry input, FK filtering, deconvolution, velocity semblance, residual
statics, stacking chart and more...

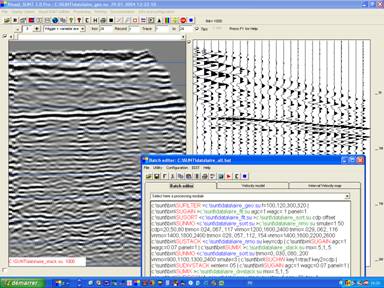

editor is a powerful tool with on line help and interactive input.
All important SU/SUNT modules have an input panel with comments and default
options are multiple: wiggle, amplitude, color, gray scale... You can
print at any scale your printer is capable of, and very long plots are possible.
You can also save profiles on files (BMP or JPG).
Visual SUNT Pro comes
- Modelization software
- 3 D and crooked line geometry input
- SPS geometry input
- New migration module
Download a demo version with a data set http://www.w-geosoft.com
Visual SUNT Pro specifications
- Unlimited number of
Color, Amplitude color and gray scale
display below stacked profile
model color in background
amplitude or trace equalization
up and down, left and right with cursor.
number of channels allowed
Visual_SUNT printing module
quality printing module with preview, zoom, scroll
export of any SU file (compatible with COREL DRAW, Adobe Illustrator, ...)
model, fold and topography can be easily printed!
B&W, amplitude gray scale, amplitude color scale, wiggle, clip...
copies, BMP and JPEG file recording
Export to display amplitude color profiles
from SEG2, SEG_B, SEG-D Sercel 388+408, SEG-Y, SEG1, ES-1225,
Bison, PASI, OYO McSeis, ABEM Mark 3 New SAC files!
files RAMAC, GSSI and EKKO PULSE are supported now!!!!
your seismograph is not listed here, we can write a translation module for
you! Contact us
to KGS format conversion, KGS to SU floating point and integer,
file to SU and SU to ASCII
and SEGY field data display
visualization and editing
value export module to EXCEL
export ASCII file
Raw data utility
breaks alignment for statics!!!
first break picking
statics with automatic thickness computation
files (more than 100'000 traces tested) are supported
possibilities to kill traces and mute records
interactive geometry input for any type of shooting even with Split spread
input with ASCII files or SPS
degree, minute, seconds to UTM conversion
display on map (for control)
file with all geometrical data

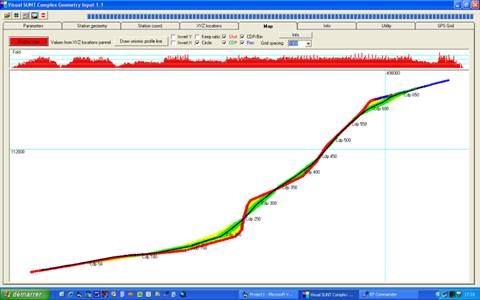

line geometry input
drawing and filtering
mute on screen
traces on screen
with automatic trace increment
velocity semblance picking
NMO display with time-velocity picking
velocity picking on constant velocity scan
distribution colored map
Visual SUNT specific utility modules
- Migration tool
filtering with polygon drawing on screen!
to depth easy conversion
file recording all processing operations
spectrum (SUSPECFX and Visual_SUNT specific module)
static module NEW Version !!!
utility: parameters input, correlation
kill of noisy traces
Stack New powerful CDP stacking tool NEW !!!
mean trace NEW !!!
and exponential gain NEW !!!
mixing NEW !!!
Visual_SUNT you can use more than 100 SU modules...
Batch processing with
spelling control and automatic file name input
You can add your own
Help and tutorial
and an important documentation on the CD
SU modules have an on-line description
demo sets with processing batch flow
easy WEB link for help e-mails and upgrades
showing all the important processing steps
Software protection: USB key
allow you to move your license from one computer to another one. Soft key is
also available. No other seismic processing software on the market is
competitive with Visual_SUNT price/capacities ratio. Inexpensive multi-user
licenses are available for academic non profit purpose.
